DESCRIPTION

Every set of Cayin HA-6A comes with two sets of power tubes, the Genalex Gold Lion KT88 and the Electro Harmonix EL34. You can configure your amp for different vacuum tubes elevating the music listening experience on your headphones. Change output as well as the sound signature instantly with the dedicated dual operation mode: Triode and Ultralinear. You can optimize the entire system depending on the music application. Under the Triode mode, you get tendering, rich harmonics, smooth and lush holography making it perfect for vocals and string music. If your music requires punch and dynamics, the ultra-linear mode is ideal for you.

Designed to match with a wide range of headphones, the Cayin HA-6A offers a 4.4mm balanced output along with the standard 6.35mm and an XLR4 balanced output. To match the impedance levels of headphones, the HA-6A comes with indigenously developed output transformers. These transformers come with three sets of impedance matched outputs: Highs, Mids and Lows ranging from 8Ω to 600Ω.

Featuring a skillfully handcrafted circuitry, the Cayin HA-6A represents the time-consuming attention to detail craftsmanship of proficient Cayin engineers. This circuit design includes point to point wielding consisting of a premium wire. This wire offers high-grade transparency while its refinement enhances overall efficiency and conductivity.

The lightweight gorgeous aluminium body of the Cayin HA-6A is an instant eye-catcher. The HA-6A has a layer of 6-step hand painted automotive spray on top of the aluminium. You can always monitor signal levels on UV meters which has a stunning visual effect.

This powerful headphone amp finds its strength from its transformer-coupled tube. It allows matched output transformers to deliver real balanced output which offers exceptional soundstage and precise audio separation. The other highlight of the Cayin HA-6A is its multi-stage independent power supply. The independent regulator design offers excellent voltage amplification. The ripple effect of power interference is at the minimum leading to an outstanding audio performance without any kind of grain or harshness.

Meticulously designed high precision 24 steps potentiometer that minimise noise and are highly durable and reliable. You get a premium silver plated shielded cable. This cable reduces interference during the transmission for a clear and unhindered sound.

SPECS

SUPPORTED TUBES

ELECTRO-HARMONIX 12AU7EH	12AU7, ECC82, ECC802S, CV4003, 5814A, 6189
GENALEX GOLD LION KT88	HT88, KT990, KT100, 6550, 6550A, 6550EH
ELECTRO-HARMONIX EL34 EH	EL34, EL37, 6CA7, 6L6GC, 5881, KT66, KT77
ECC 22DE4	22DE4

SPECIFICATION

OUTPUT RATING
KT88	Single Ended: TR: 800mW+800mW (L); 1600mW+1600mW (M); 2500mW+2500mW (H) UL: 1200mW+1200mW (L); 2200mW+2200mW (M); 3600mW+3600mW (H) Balanced: TR: 1200mW+1200mW (L); 2000mW+2000mW (M); 3200mW+3200mW (H) UL: 1900mW+1900mW (L); 3000mW+3000mW (M); 4500mW+4500mW (H)
EL34	Single Ended: TR: 750mW+750mW (L); 1400mW+1400mW (M); 2200mW+2200mW (H) UL: 1000mW+1000mW (L); 2000mW+2000mW (M); 3300mW+3300mW (H) Balanced: TR: 1000mW+1000mW (L); 1800mW+1800mW (M); 2900mW+2900mW (H) UL: 1600mW+1600mW (L); 2800mW+2800mW (M); 4200mW+4200mW (H)
FREQUENCY RESPONSE	10Hz ~ 65kHz (+/-3dB)
SENSITIVITY	220mV ~ 450mV
SIGNAL-TO-NOISE RATIO	98dB (A-Weighted)
INPUT CONNECTORS	XLR x 2, RCA x 2
PHONE OUTPUT CONNECTORS	6.35mm Standard, 4.4mm balanced, XLR4 balanced
PHONE IMPEDANCE SELECTION	L: 6-84Ω M: 65-250Ω H: 251-600Ω
VACCUM TUBE SUPPLIED	2 x Generalex Glod Lion KT88 2 x Electro Harmonix EL34 EH 2 x Electro Harmonix 12AU7 EH 2 x RCA ECA 22DE4
DIMENSIONS	360mm X 322mm X 197mm
NET WEIGHT	19.5 kg
OVERALL POWER CONSUMPTION	140W
FUSE	~ 220V-240V: T1AL250V; ~ 100V-120V: T2AL250V
WORKING CONDITION	Temperature: 0°C~40°C HUMIDITY: 20%~80%
STORAGE CONDITION	Temperature: -20°C~70°C HUMIDITY: 20%~90%

IN THE BOX

BOX CONTENTS

1. Cayin HA-6A

Warranty & MEDIA REVIEWS

Don't sweat it, this Cayin HA-6A comes with a 1 year warranty from Cayin that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

Read more about Cayin's warranty in India.

"With crisp industrial design on the outside and classic point-to-point wiring within, the HA-6A makes quite the visual statement – gotta love those big VU meters!"

Read More

DESCRIPTION

TRANSFORM MUSIC LISTENING ON YOUR HEADPHONES WITH DUAL OPERATION MODE AND POWER TUBES

PAIRS WITH A WIDE RANGE OF HIGH-END HEADPHONES USING IMPEDANCE MATCHED OUTPUTS

HANDCRAFTED AND DETAILED CIRCUITRY FOR TRANSPARENCY, EFFICIENCY AND CONDUCTIVITY

GORGEOUSLY HANDCRAFTED AESTHETIC DESIGN WITH VISUAL UV METERS

TRANSFORMER-COUPLED TUBE POWERED BY AUDIOPHILE-GRADE POWER MANAGEMENT

HIGH-GRADE COMPONENTS FOR A PERFORMANCE FOR BALANCED AND REALISTIC SOUND

SPECS

Warranty & MEDIA REVIEWS

1 Year Warranty

Cayin

Cayin - HA-6A

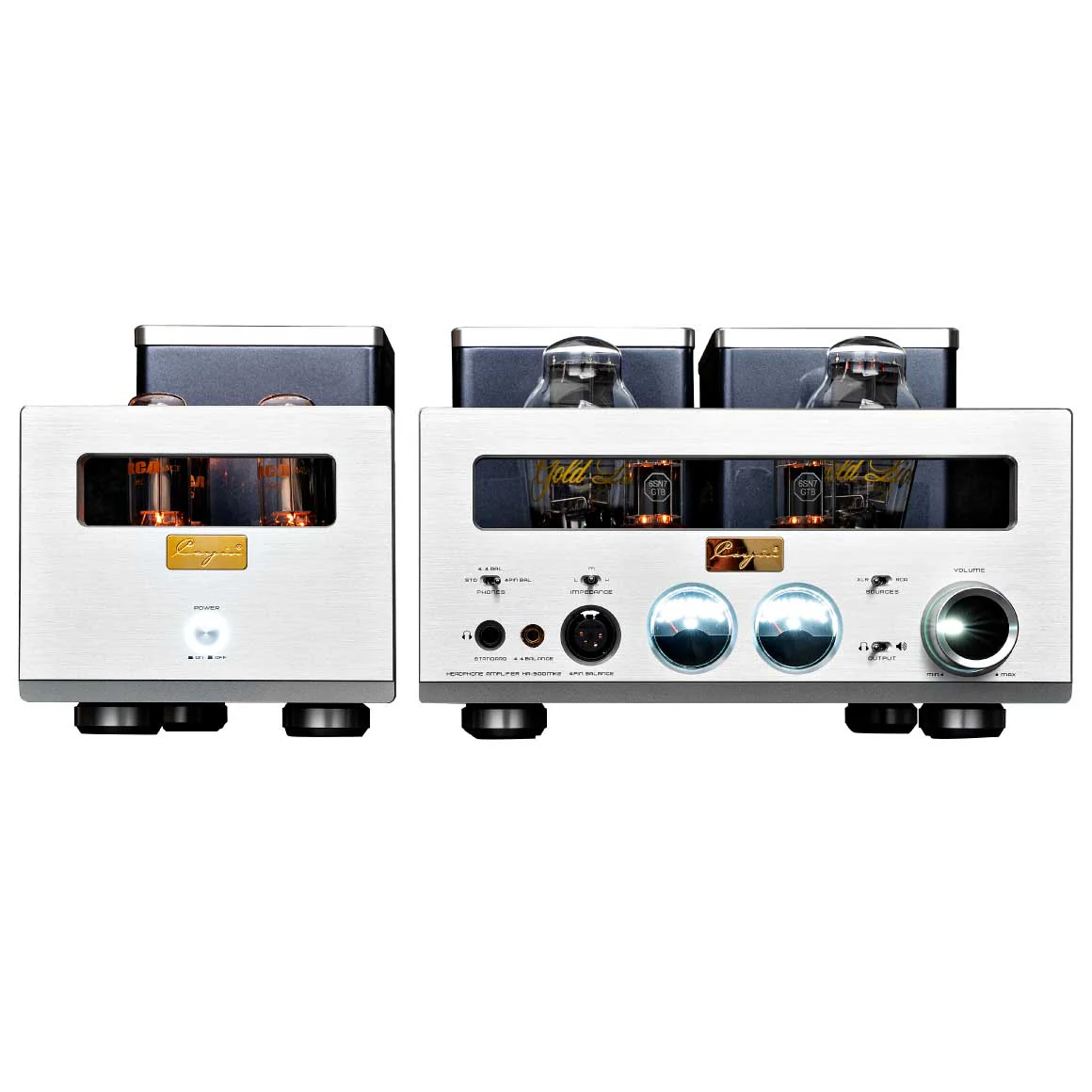

Cayin - HA-300MK2

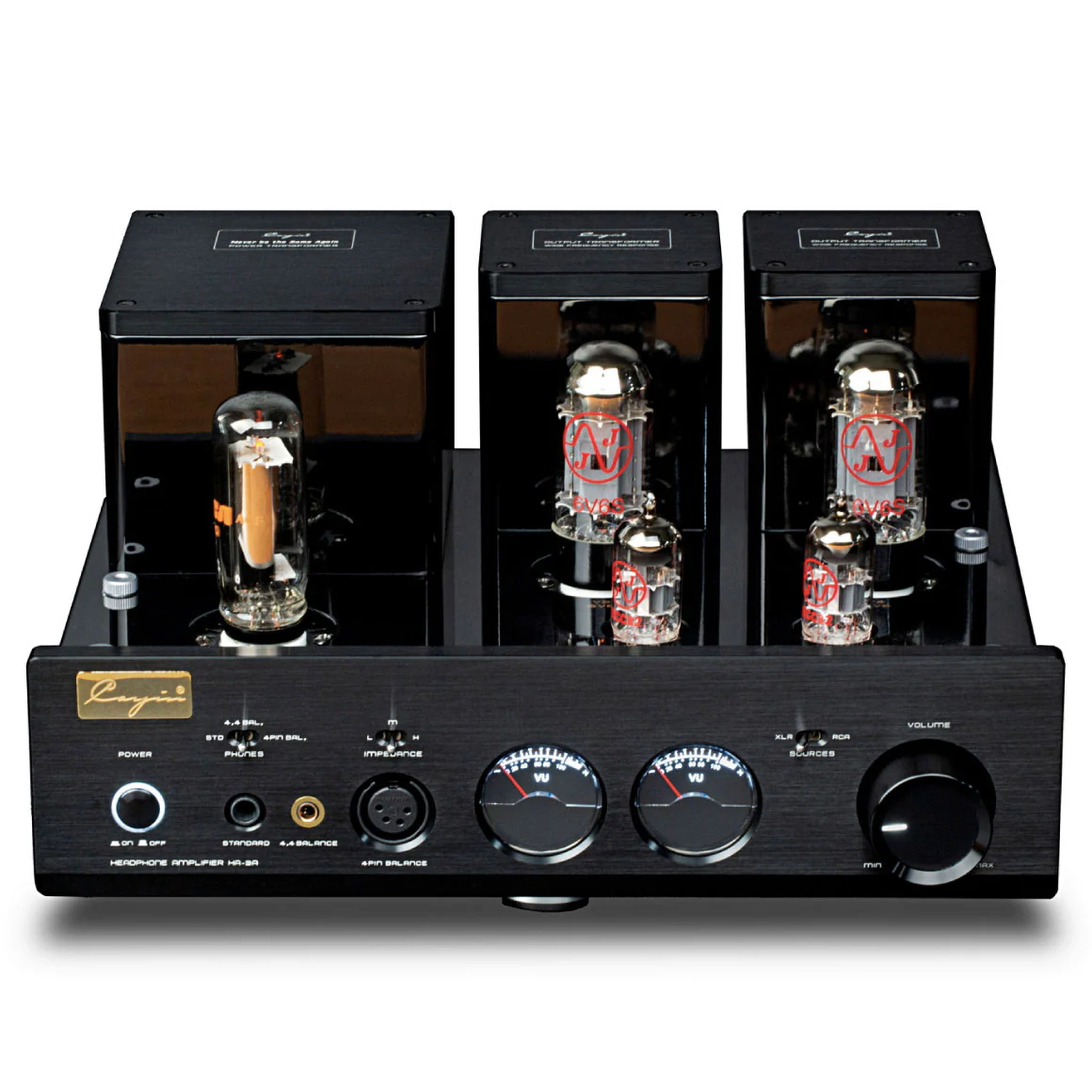

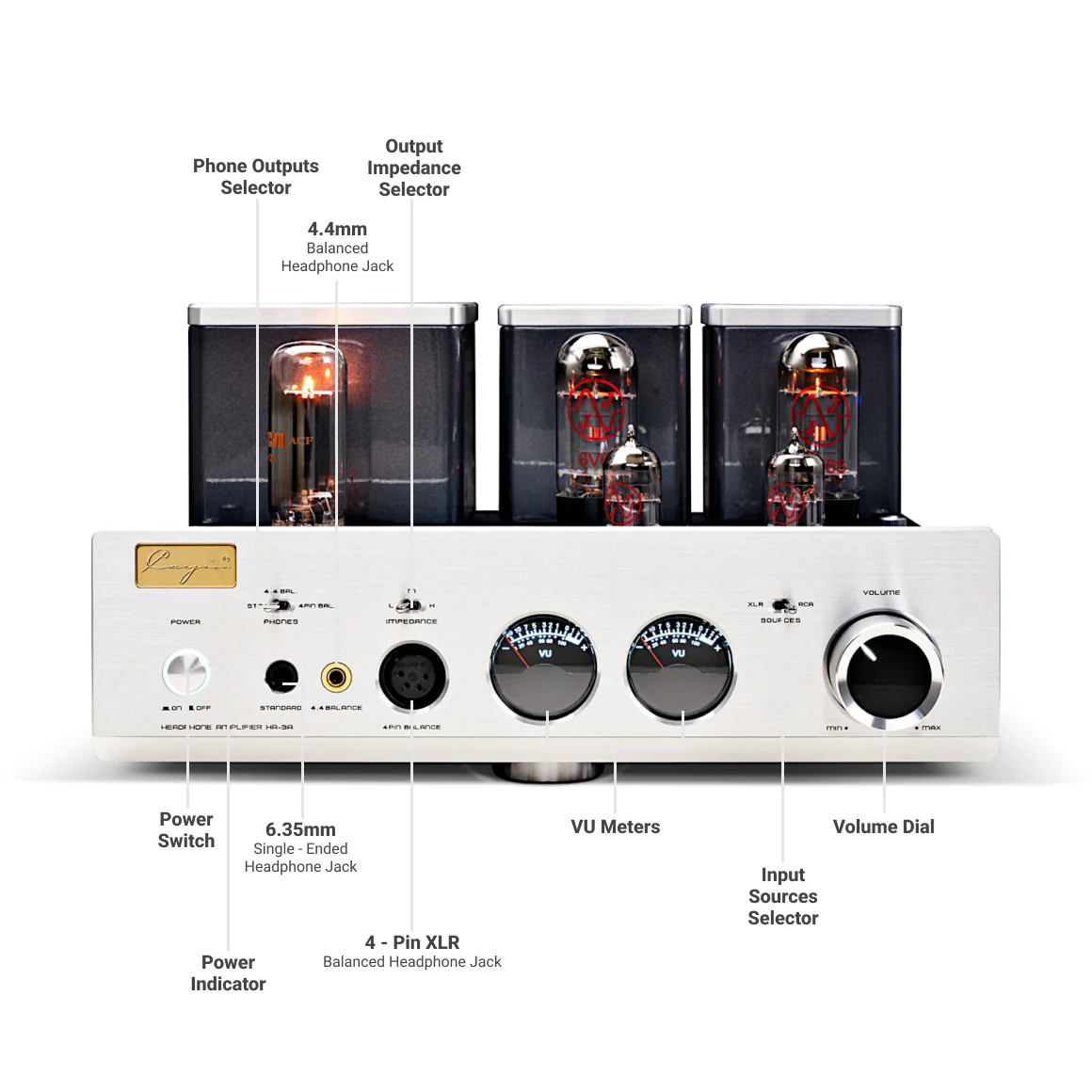

Cayin - HA-3A

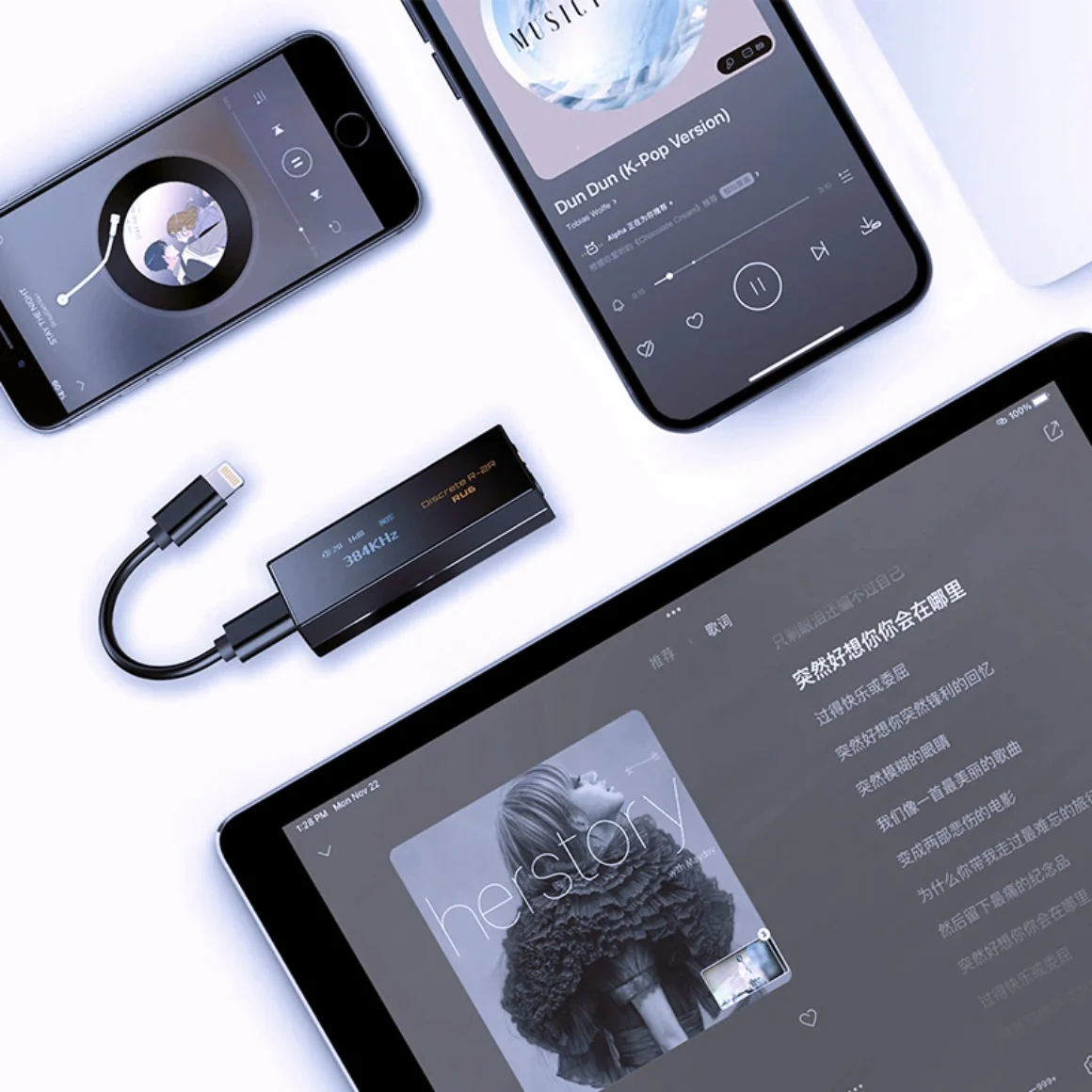

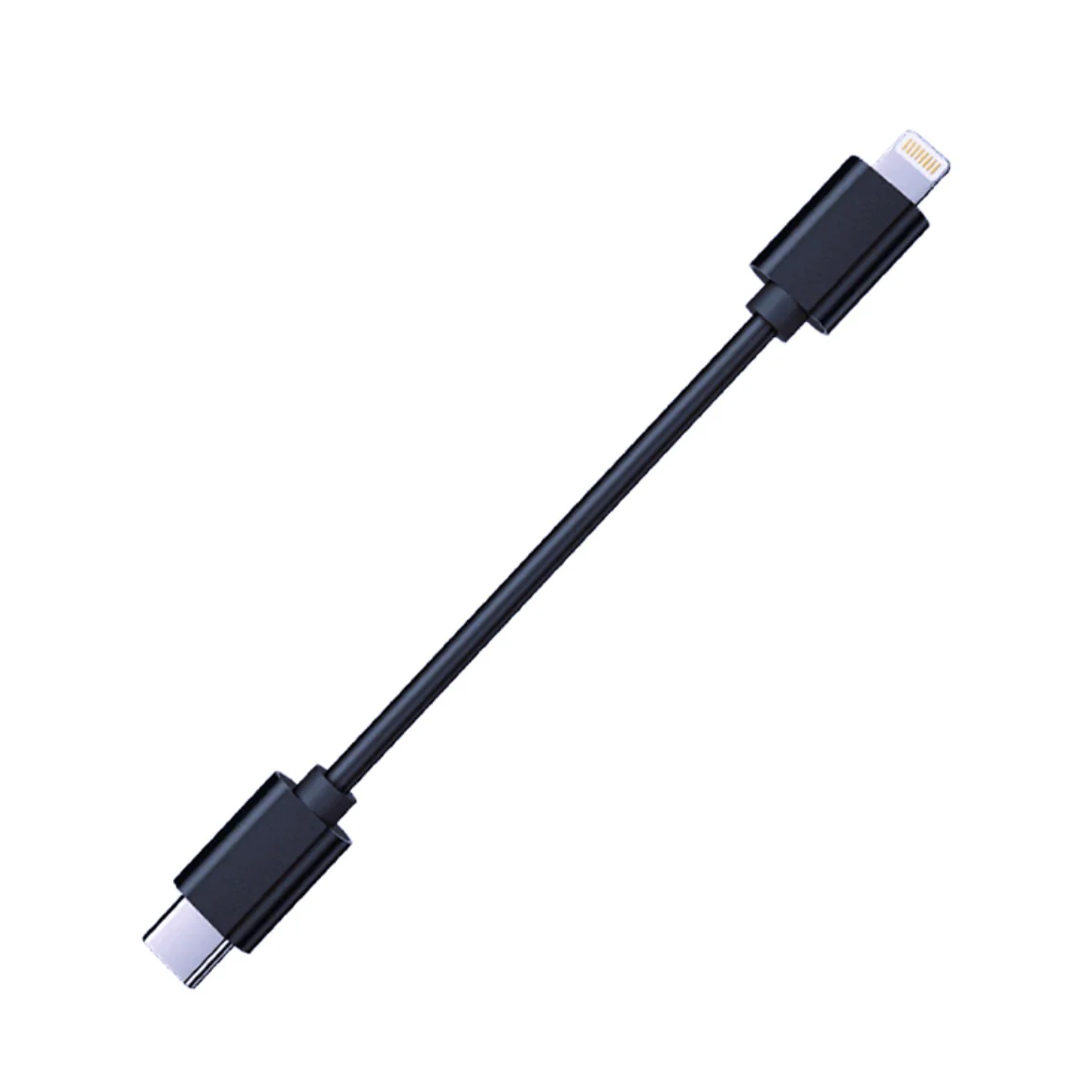

Cayin - RU6 Lightning To USB-C Cable CS-L2C

Cayin - RU7

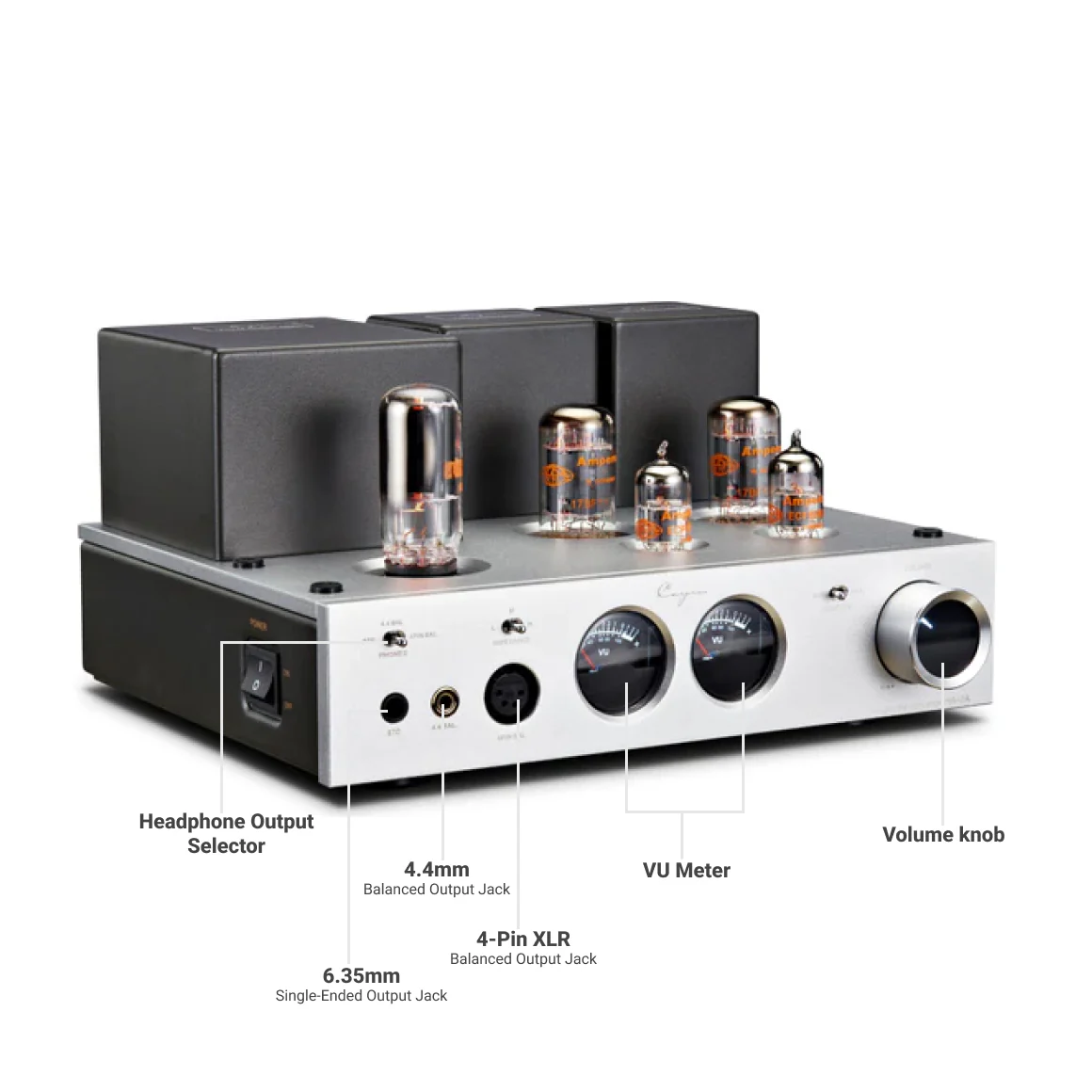

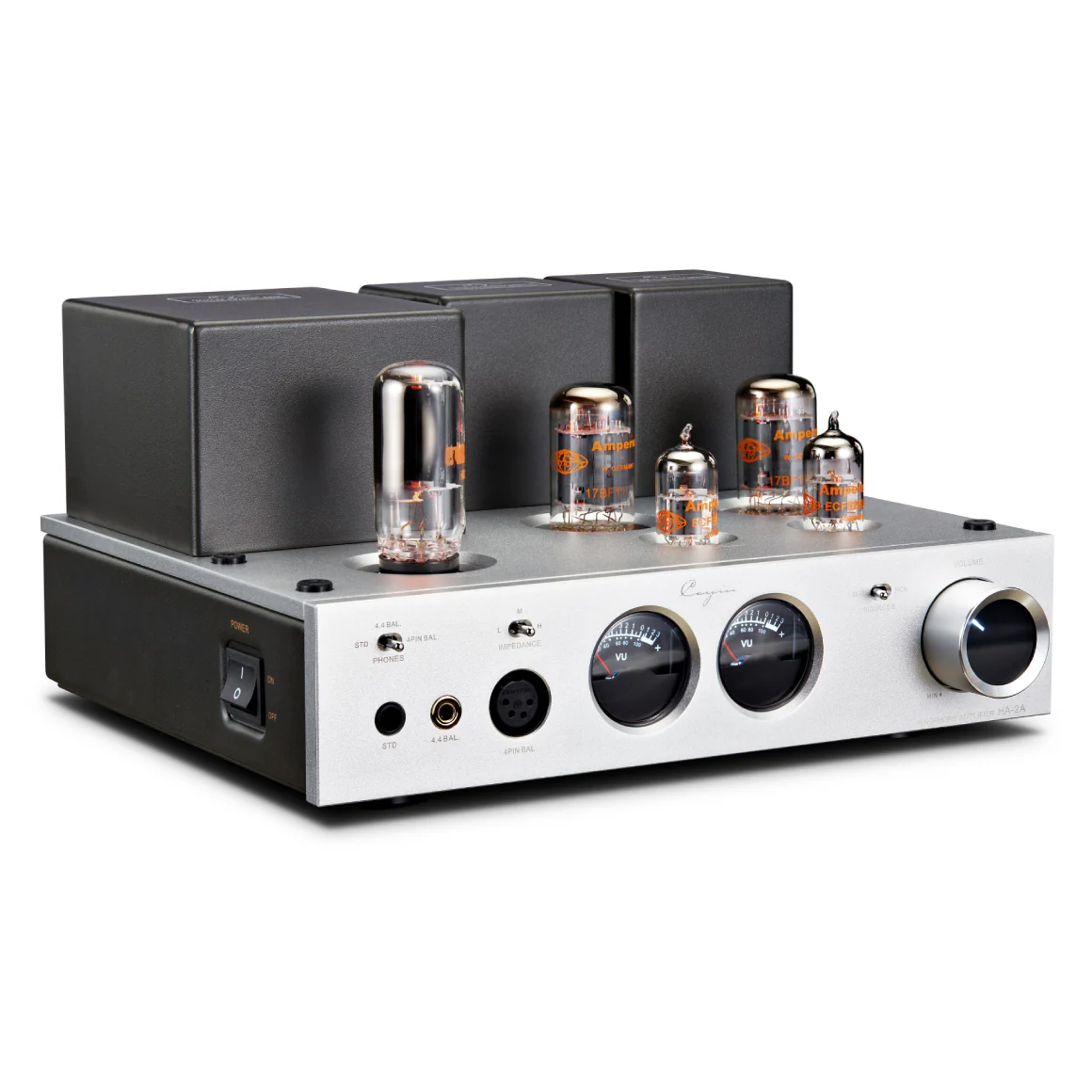

Cayin - HA-2A

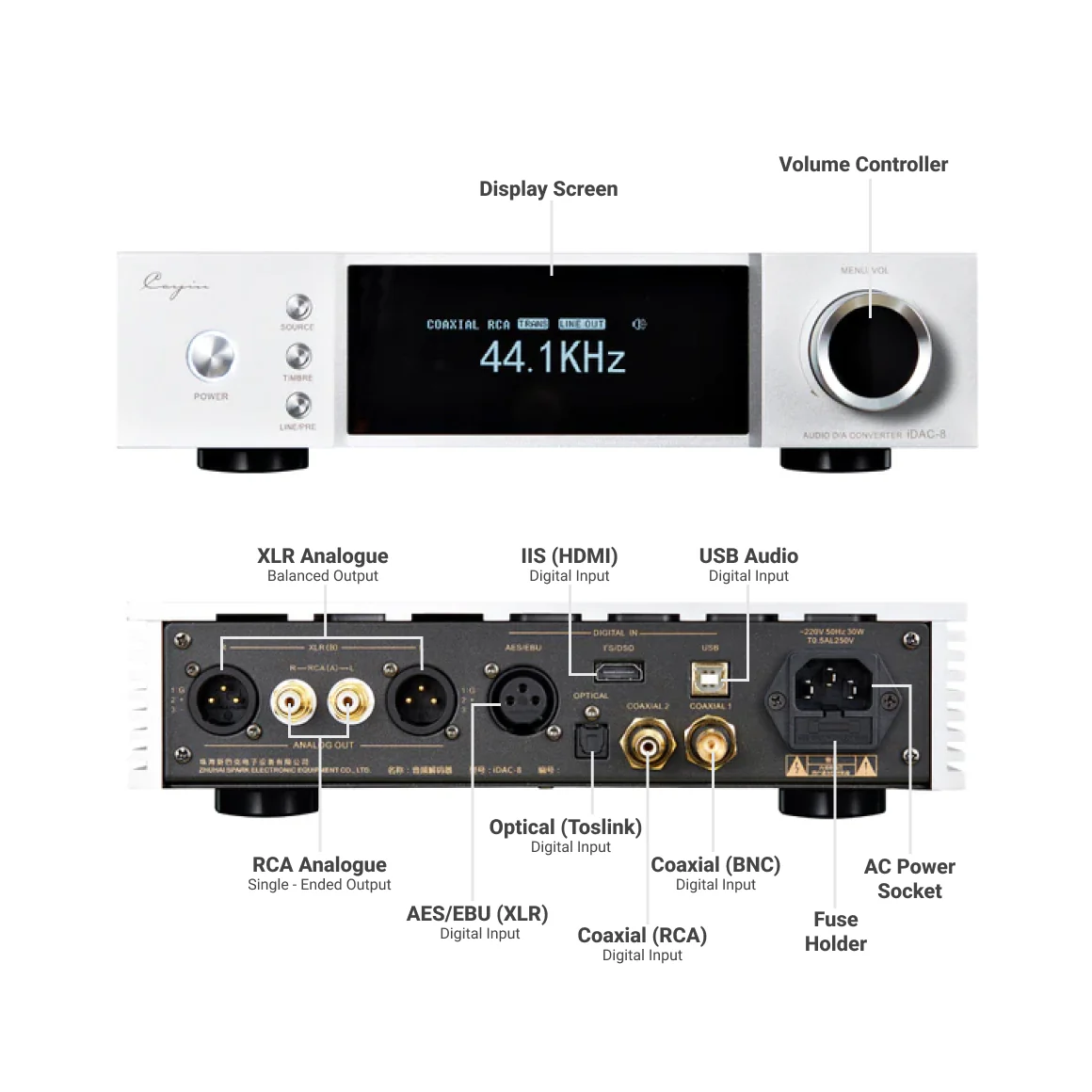

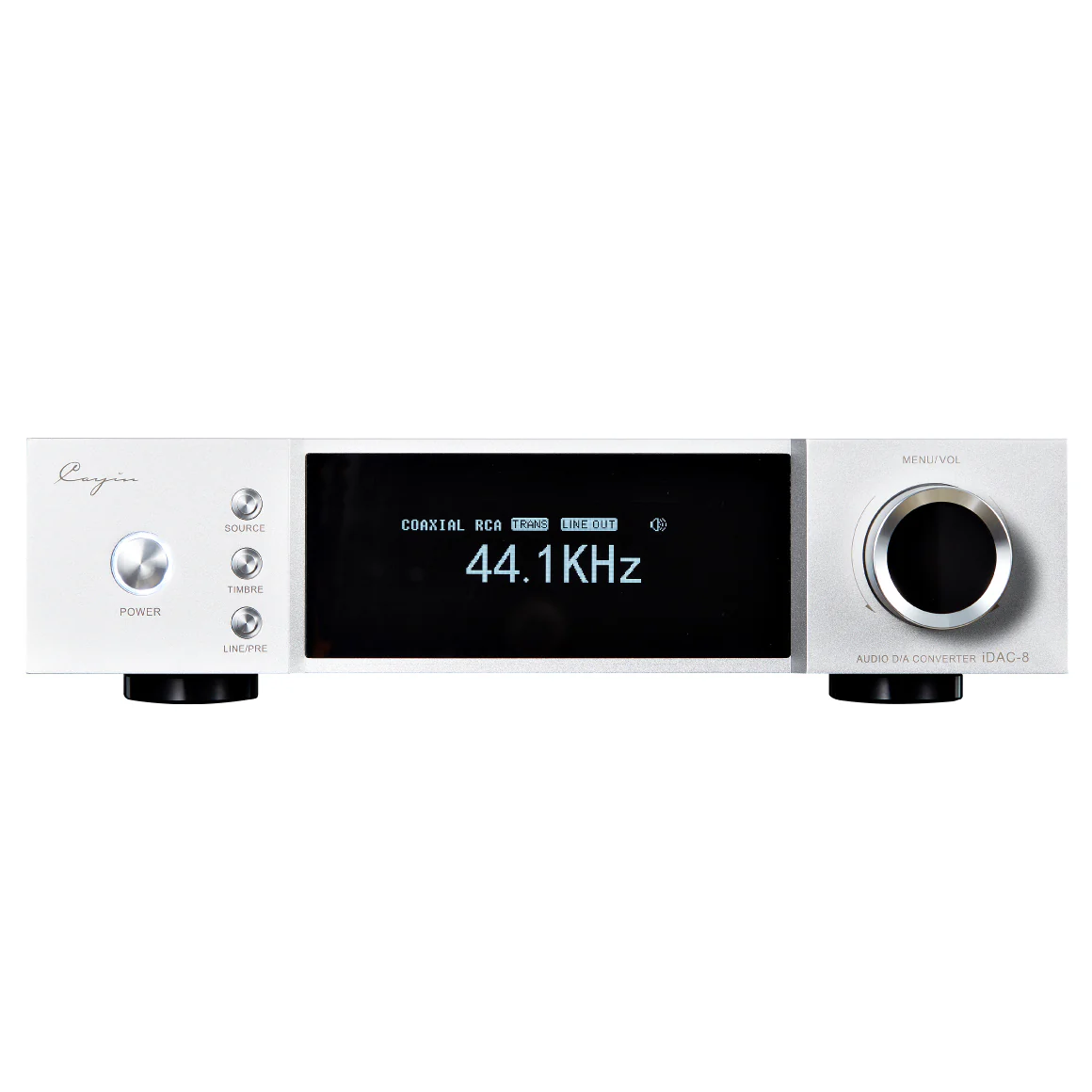

Cayin - iDAC-8

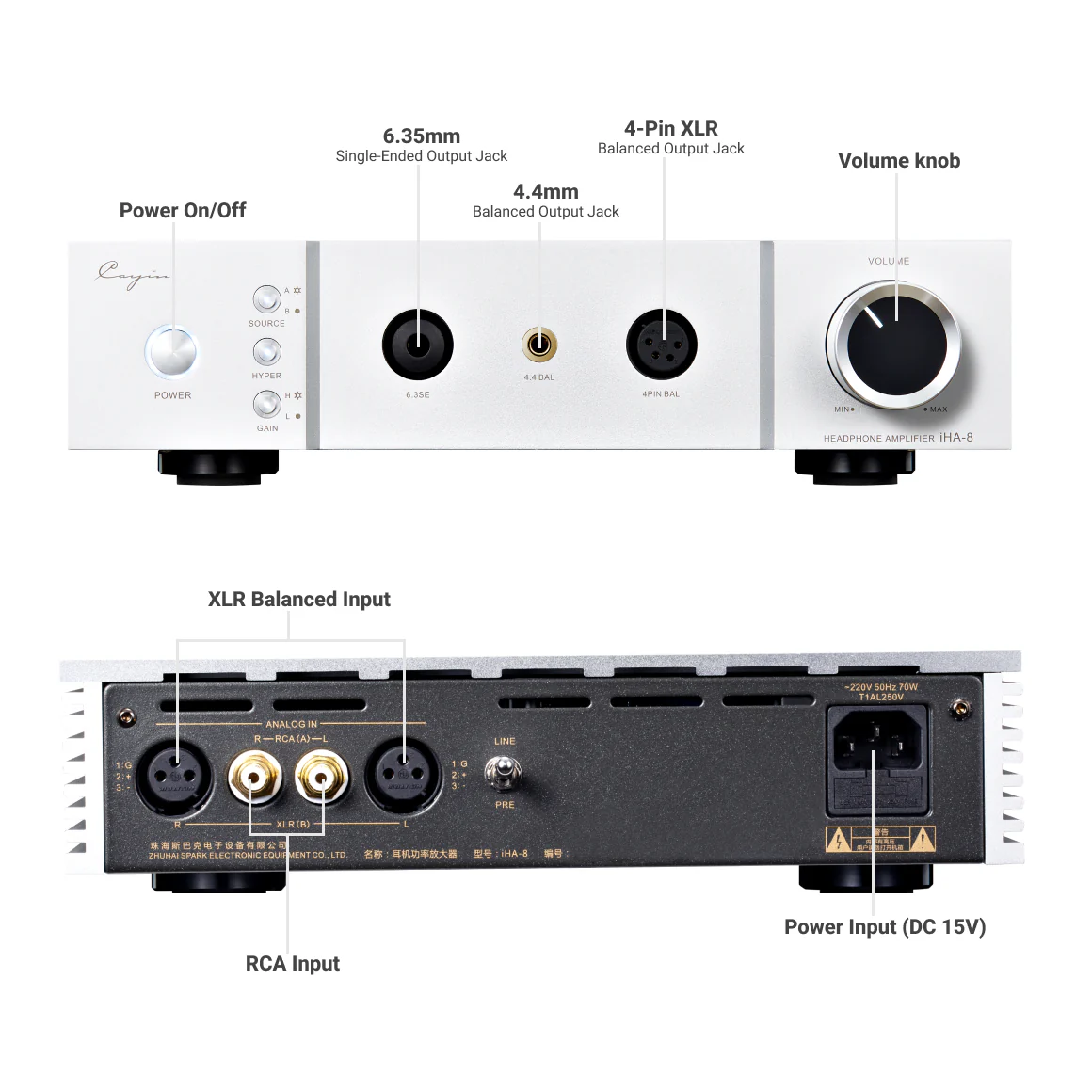

Cayin - iHA-8

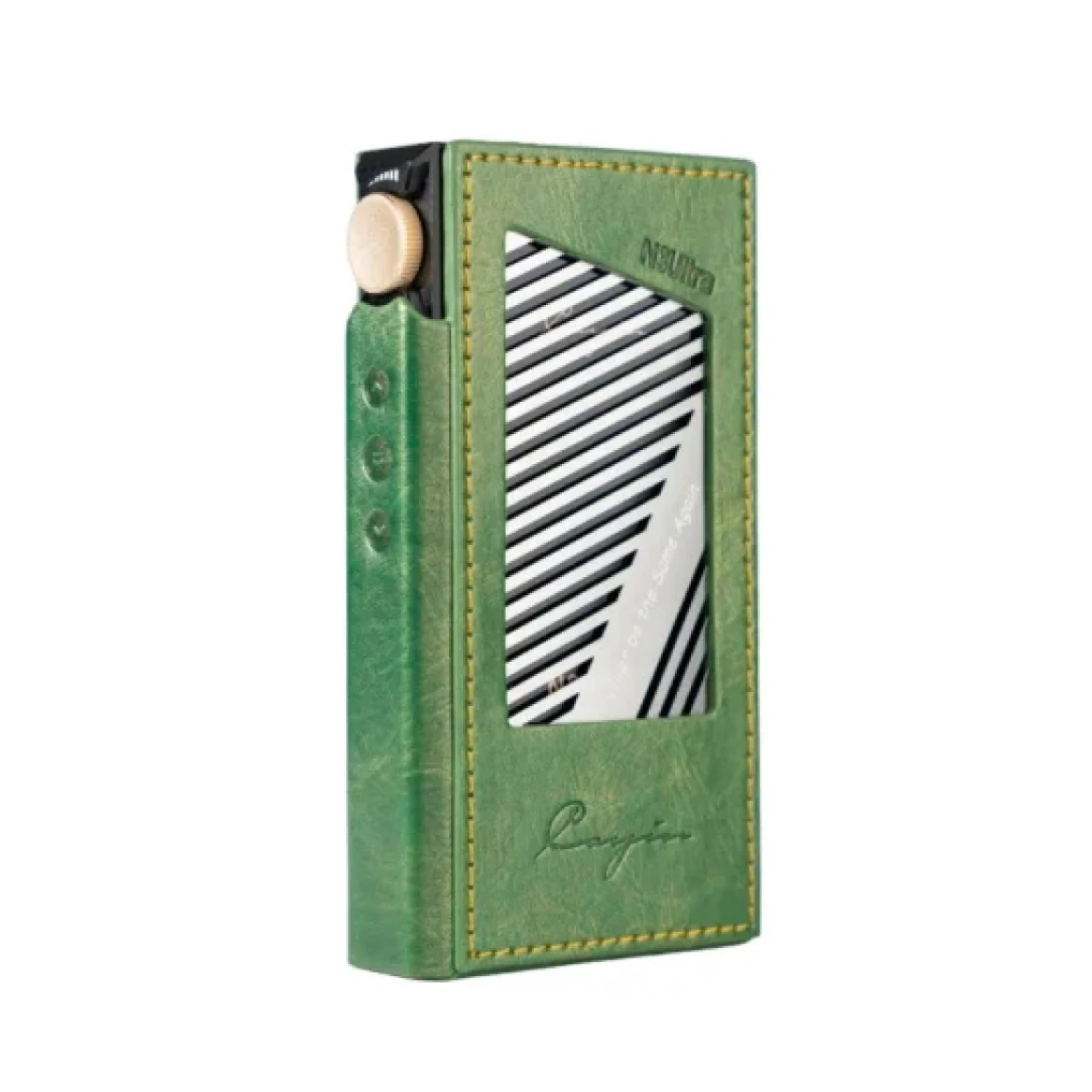

Cayin - N3Ultra Leather Case

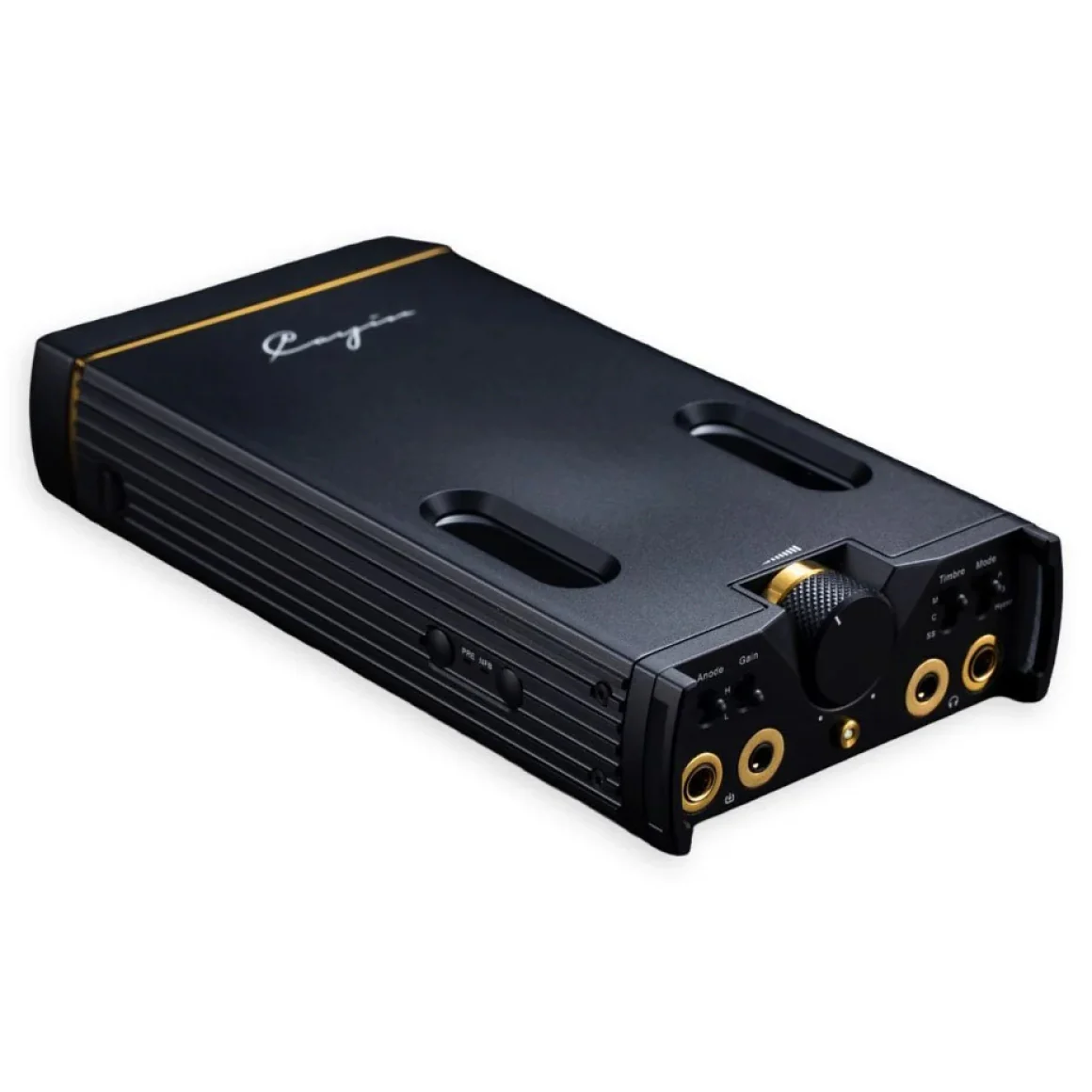

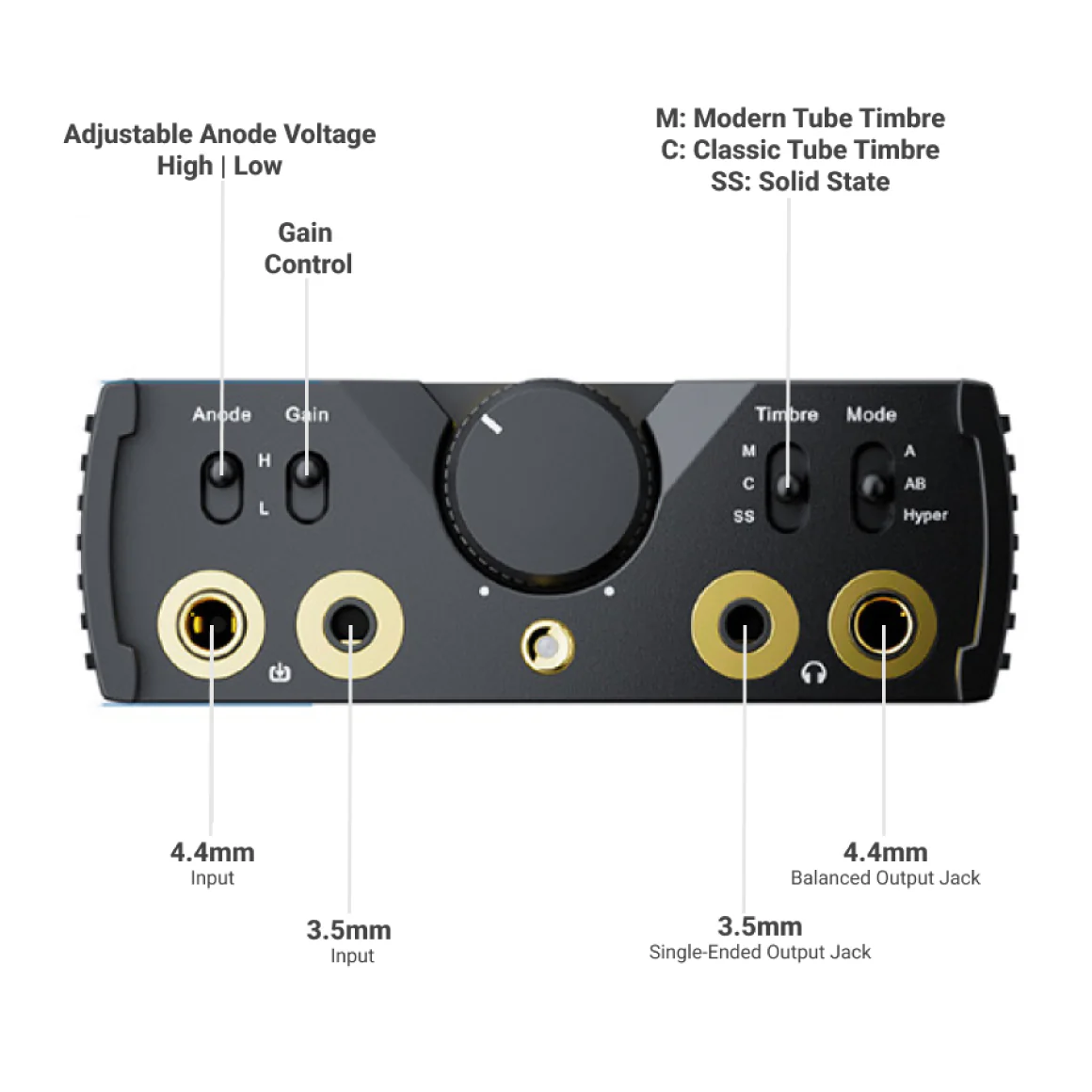

Cayin - C9ii

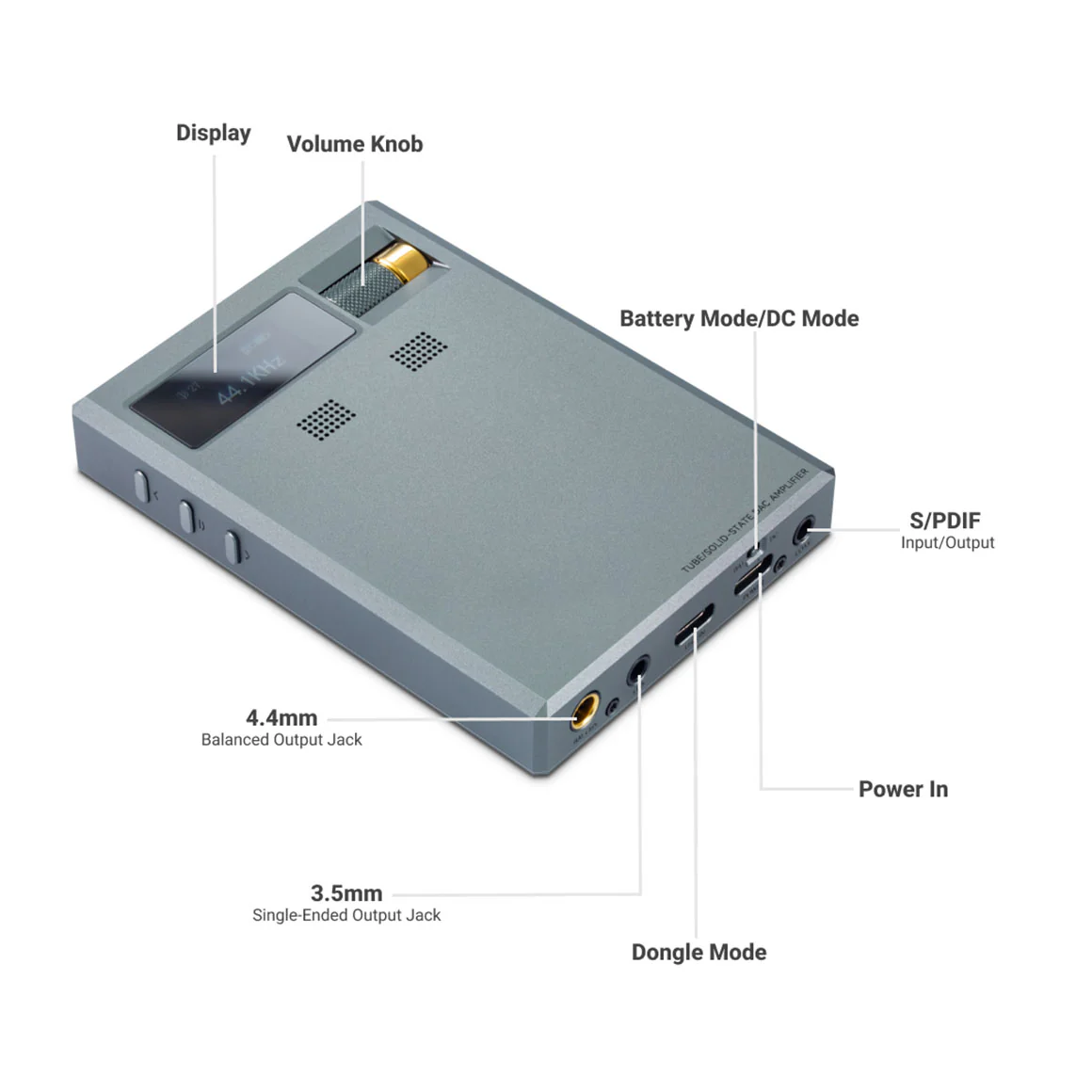

Cayin - RU9

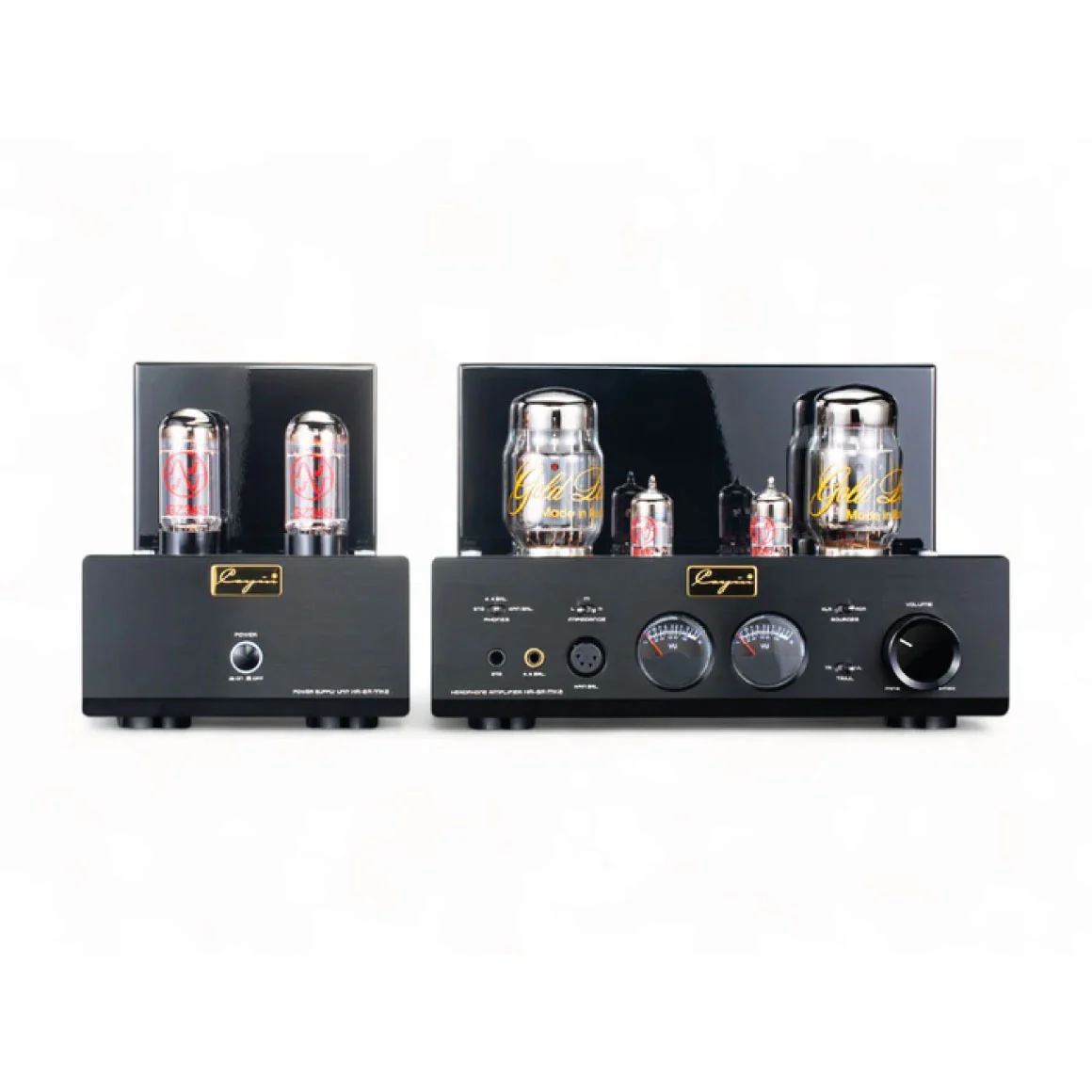

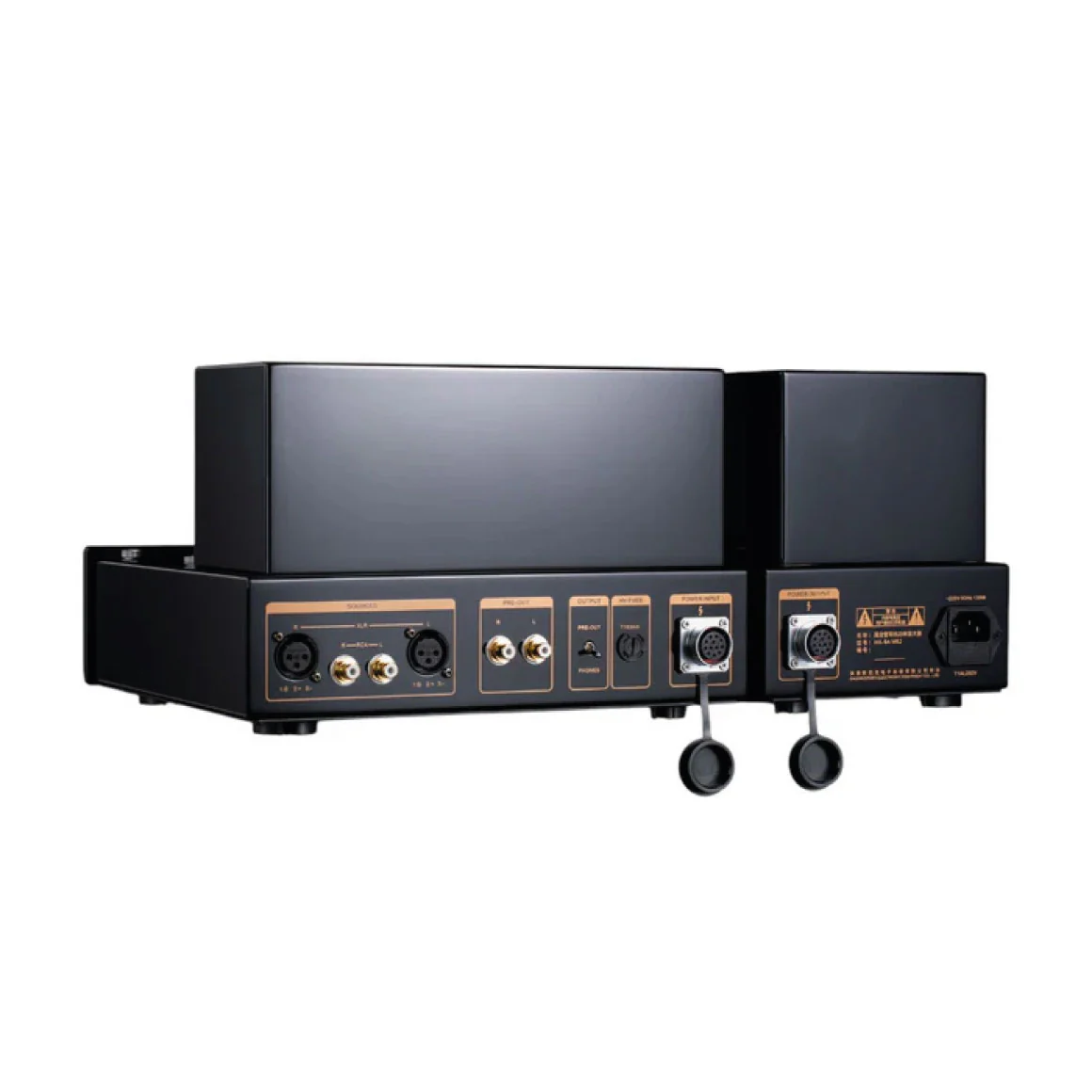

Cayin - HA-6A MK2
